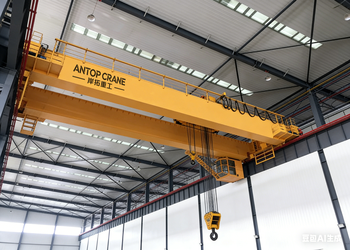

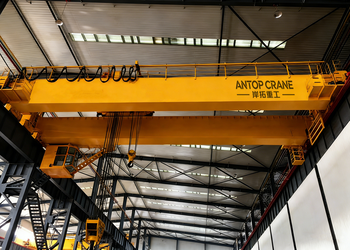

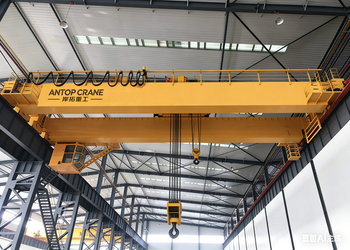

QD General Purpose Double Girder Crane is intended for workshops, warehouses and production lines that need full-bay material handling. Available configurations include capacity: 5T – 190T; span: 10m -31m; lifting height: 6m – 20m. The final configuration should be matched to the actual load, site layout and operating frequency.
Typical Applications
Workshops, warehouses and production lines that need full-bay material handling.
What to Confirm Before Ordering
- Confirm rated load, travel range and required lifting height.
- Share the site layout, available headroom and power supply.
- Specify duty cycle, control method and indoor or outdoor conditions.
Send us your project requirements and available drawings. Our engineers will check the main dimensions, duty class and safety configuration before quotation.
| Lifting heavy machines/molds daily | Double girder strength – handles 10–200 tons with zero flex |
|---|---|
| Need crane that never breaks down | Proven design – 50+ years global use. Simple = reliable = low maintenance |
| Budget for real heavy lifting | Best price/performance for >10 ton jobs. No fancy extras – just solid lifting |
| Rated Lifting Capacity | 5T - 190T |
| Span Length | 10m -31m |
| Lifting Height | 6m - 20m |
| Working Class | A5-A6 |
| Lifting Speed | Single speed: 2.6m/min - 15.5m/min |
| Trolley Traveling Speed | 22.5-42.6m/min |
| Crane Traveling Speed | 30-93.7m/min |
| Control Mode | Remote control/air operation |
| Power Supply | 380V/50Hz/3Phase /Customizable |
| Steel track | QU70 |
| Working Temperature | -20℃ - +45℃ |
| Protection Grade | IP44 (Standard) |
What information is needed to select the right QD General Purpose Double Girder Crane?
Please share the required load, key dimensions, operating frequency, power supply and working environment. Drawings or site photos help us confirm the configuration.
Can the QD General Purpose Double Girder Crane be customized?
Yes. Dimensions, materials, speeds, controls and protection options can be matched to the project after technical review.
Tell Us About Your Project
Tell us your lifting requirements and our engineer will recommend a suitable solution.
