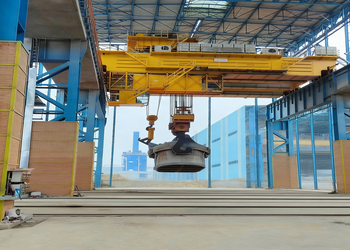

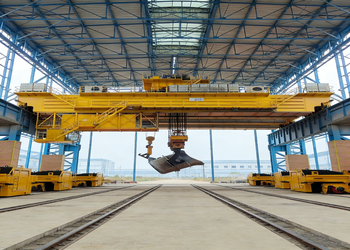

YZ Casting Crane is intended for workshops, warehouses and production lines that need full-bay material handling. Available configurations include capacity: 50/10T – 180/40T; span: 16m – 25m; lifting height: 12m – 26m. The final configuration should be matched to the actual load, site layout and operating frequency.
Typical Applications
Workshops, warehouses and production lines that need full-bay material handling.
What to Confirm Before Ordering
- Confirm rated load, travel range and required lifting height.
- Share the site layout, available headroom and power supply.
- Specify duty cycle, control method and indoor or outdoor conditions.
Send us your project requirements and available drawings. Our engineers will check the main dimensions, duty class and safety configuration before quotation.

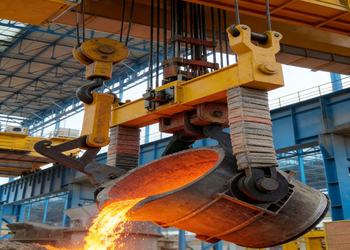

| Ladle tilting during travel | Special casting hook (dragon gate hook) – locks ladle securely, zero swing |
|---|---|
| Rated Lifting Capacity | 50/10T - 180/40T |
| Span | 16m - 25m |
| Lifting Height | 12m - 26m |
| Working Class | A7 |
| Lifting Speed | Single speed: 6m/min - 12m/min |
| Trolley Traveling Speed | 30-42m/min |
| Crane Traveling Speed | 68-78m/min |
| Control Mode | Ground pendant control/ Cab control |
| Power Supply | 380V/50Hz/3Phase /Customizable |
| Steel track | QU120 |
| Max wheel load | 440KN-660KN |
| Protection Grade | IP44 (Standard) |
What information is needed to select the right YZ Casting Crane?
Please share the required load, key dimensions, operating frequency, power supply and working environment. Drawings or site photos help us confirm the configuration.
Can the YZ Casting Crane be customized?
Yes. Dimensions, materials, speeds, controls and protection options can be matched to the project after technical review.
