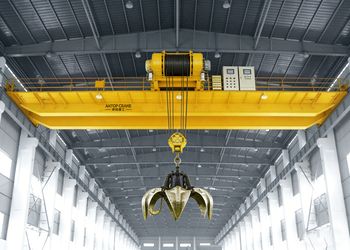

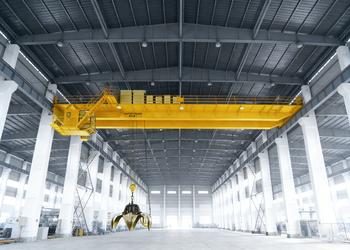

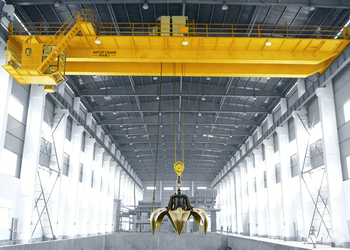

QZ Grab Bridge Crane is intended for workshops, warehouses and production lines that need full-bay material handling. Available configurations include capacity: 5 tons – 20 tons; span: 10m-31.5m. The final configuration should be matched to the actual load, site layout and operating frequency.
Typical Applications
Workshops, warehouses and production lines that need full-bay material handling.
What to Confirm Before Ordering
- Confirm rated load, travel range and required lifting height.
- Share the site layout, available headroom and power supply.
- Specify duty cycle, control method and indoor or outdoor conditions.
Send us your project requirements and available drawings. Our engineers will check the main dimensions, duty class and safety configuration before quotation.
| Quick loading and unloading required | 8-12 cycles per hour → 50-100 tons handled per hour. |
|---|---|
| Rated lifting capacity | 5 tons - 20 tons |
| Span length | 10m-31.5m |
| Increase height | 8m - 26m |
| Working class | A5-A6 |
| Lift speed | Single speed: 34.3 m/min - 40 m/min |
| Tram speed | 40 meters/minute |
| Crane travel speed | 80 meters/minute |
| Control Mode | Air operation |
| power supply | 380V/50Hz/Three-phase/Customizable |
| Operating temperature | -20℃ - +45℃ |
| Protection level | IP44 (standard) |
What information is needed to select the right QZ Grab Bridge Crane?
Please share the required load, key dimensions, operating frequency, power supply and working environment. Drawings or site photos help us confirm the configuration.
Can the QZ Grab Bridge Crane be customized?
Yes. Dimensions, materials, speeds, controls and protection options can be matched to the project after technical review.
Tell Us About Your Project
Tell us your lifting requirements and our engineer will recommend a suitable solution.
