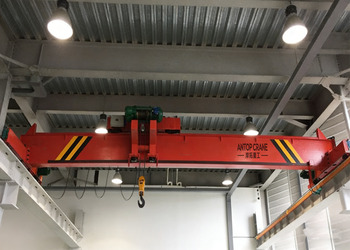

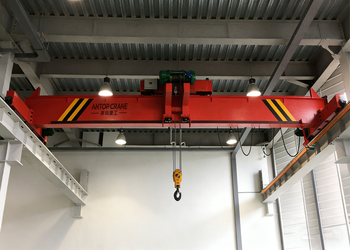

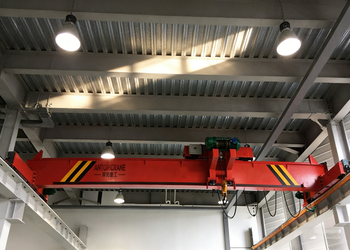

LDP Type Electric Single Girder (Partial hanging) Crane is intended for workshops, warehouses and production lines that need full-bay material handling. Available configurations include capacity: 2T – 16T; span: 7.5m – 31.5m; lifting height: 6m – 30m. The final configuration should be matched to the actual load, site layout and operating frequency.
Typical Applications
Workshops, warehouses and production lines that need full-bay material handling.
What to Confirm Before Ordering
- Confirm rated load, travel range and required lifting height.
- Share the site layout, available headroom and power supply.
- Specify duty cycle, control method and indoor or outdoor conditions.
Send us your project requirements and available drawings. Our engineers will check the main dimensions, duty class and safety configuration before quotation.
| Too narrow for normal bridge crane | → Works in tight spaces. Only needs support on one edge |
|---|---|
| Rated Lifting Capacity | 2T - 16T |
| Span Length | 7.5m - 31.5m |
| Lifting Height | 6m - 30m |
| Working Class | A3 - A4 |
| Lifting Speed | 8/0.8m/min |
| Trolley Traveling Speed | 20m/min |
| Crane Traveling Speed | 20m/min |
| Control Mode | Handle/Remote control |
| Power Supply | 380V/50Hz/3Phase /Customizable |
| Steel track | QU70 |
| Working Temperature | -20℃ - +45℃ |
| Protection Grade | IP44 (Standard) |
| Insulation class | F级 |
What information is needed to select the right LDP Type Electric Single Girder (Partial hanging) Crane?
Please share the required load, key dimensions, operating frequency, power supply and working environment. Drawings or site photos help us confirm the configuration.
Can the LDP Type Electric Single Girder (Partial hanging) Crane be customized?
Yes. Dimensions, materials, speeds, controls and protection options can be matched to the project after technical review.
