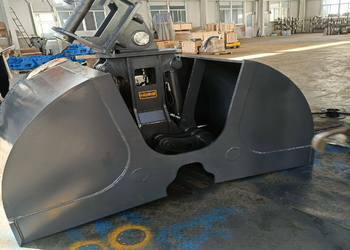

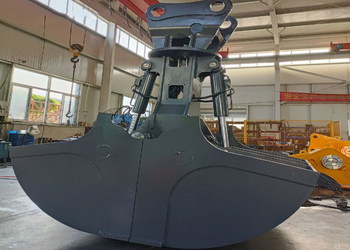

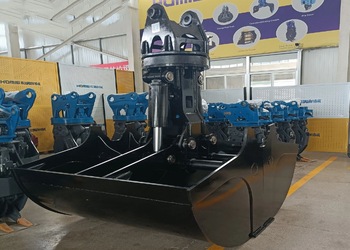

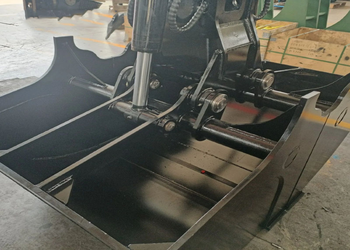

Clamshell Grab Bucket is intended for crane maintenance, modernization and system integration. Available configurations include capacity: 1 – 6 m³ (grab volume) / 3 – 25 tons (lifting weight). The final configuration should be matched to the actual load, site layout and operating frequency.
Typical Applications
Crane maintenance, modernization and system integration.
What to Confirm Before Ordering
- Confirm the required dimensions, load rating and connection details.
- Share equipment drawings or clear photos so interfaces can be checked.
- Specify the working environment, operating frequency and required standards.
Send us your project requirements and available drawings. Our engineers will check the main dimensions, duty class and safety configuration before quotation.
| Material spills during travel | Tight seal when closed – zero spillage, even for fine sand/grain |
|---|---|
| Need fast loading/unloading | 10–15 cycles/hour → moves 80 tons/hour (vs. 10 tons/hour by shovel) |
| Capacity | 1 – 6 m³ (grab volume) / 3 – 25 tons (lifting weight) |
| Operation Types | • 2-rope (simple, low cost – for light duty) • 4-rope (independent open/close – faster, no dead weight) • Ropeless (hydraulic) – for cranes without extra winches |
| Compatibility | Fits bridge cranes, gantry cranes, port cranes (hook mount) |
| Certification | CE, ISO 9001 |
What information is needed to select the right Clamshell Grab Bucket?
Please share the required load, key dimensions, operating frequency, power supply and working environment. Drawings or site photos help us confirm the configuration.
Can the Clamshell Grab Bucket be customized?
Yes. Dimensions, materials, speeds, controls and protection options can be matched to the project after technical review.
