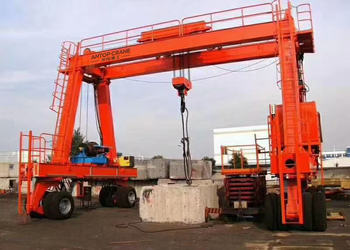

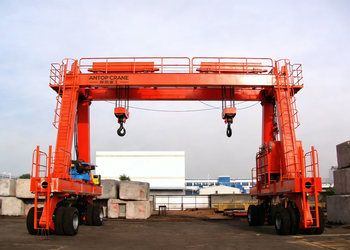

MHTS Rubber-Tired Gantry Crane is intended for yards, precast plants, construction sites and other areas where a freestanding runway is preferred. Available configurations include capacity: 5T – 50T; span: 6m – 24m; lifting height: 3m – 12m. The final configuration should be matched to the actual load, site layout and operating frequency.
Typical Applications
Yards, precast plants, construction sites and other areas where a freestanding runway is preferred.
What to Confirm Before Ordering
- Confirm rated load, travel range and required lifting height.
- Share the site layout, available headroom and power supply.
- Specify duty cycle, control method and indoor or outdoor conditions.
Send us your project requirements and available drawings. Our engineers will check the main dimensions, duty class and safety configuration before quotation.
| Need to move crane between job sites | Self-propelled – drive it like a vehicle. Relocate in 1 hour |
|---|---|
| Rated Lifting Capacity | 5T - 50T |
| Span Length | 6m - 24m |
| Lifting Height | 3m - 12m |
| Working Class | A3 - A4 |
| Lifting Speed | Single speed: 3m/min - 8m/min |
| Trolley Traveling Speed | 0-20m/min |
| Crane Traveling Speed | 0-10m/min |
| Control Mode | Remote control |
| Power Supply | 380V/50Hz/3Phase /Customizable |
| Girder Material | Q235B High-Strength Structural Steel |
| Working Temperature | -20℃ - +45℃ |
| Protection Grade | IP44 (Standard) |
What information is needed to select the right MHTS Rubber-Tired Gantry Crane?
Please share the required load, key dimensions, operating frequency, power supply and working environment. Drawings or site photos help us confirm the configuration.
Can the MHTS Rubber-Tired Gantry Crane be customized?
Yes. Dimensions, materials, speeds, controls and protection options can be matched to the project after technical review.
Tell Us About Your Project
Tell us your lifting requirements and our engineer will recommend a suitable solution.
