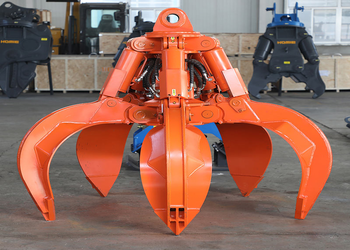

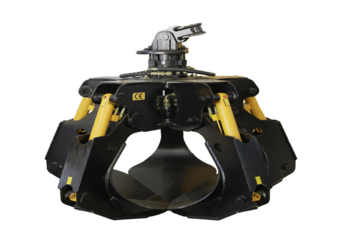

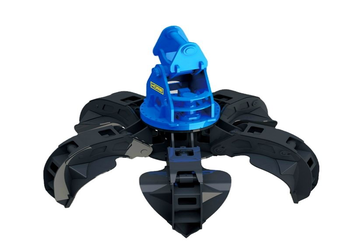

5-Tine Rotating Grab Bucket is intended for crane maintenance, modernization and system integration. Available configurations include capacity: 3 – 15 m³ (grab volume) / 5 – 25 tons (lifting weight). The final configuration should be matched to the actual load, site layout and operating frequency.
Typical Applications
Crane maintenance, modernization and system integration.
What to Confirm Before Ordering
- Confirm the required dimensions, load rating and connection details.
- Share equipment drawings or clear photos so interfaces can be checked.
- Specify the working environment, operating frequency and required standards.
Send us your project requirements and available drawings. Our engineers will check the main dimensions, duty class and safety configuration before quotation.
| 4-tine grab can't hold long bars/pipes – they slip out | 5 curved tines wrap around long/irregular items – secure grip, zero drop |
|---|---|
| Need to reposition load manually after lifting | 360° hydraulic rotation – turn load in air, place exactly where needed |
| Capacity | 3 – 15 m³ (grab volume) / 5 – 25 tons (lifting weight) |
| Tine Design | 5 curved high-strength tines (Q345B steel) + replaceable tips |
| Rotation | 360° continuous hydraulic rotation (±180° per cycle) |
| Operation | 4-rope system (2 ropes lift, 2 ropes open/close + rotate) |
| Tine Length | 1,800 – 3,500 mm (customizable for long materials) |
| Wear Protection | Hardened tips (HRC 50+) + side plates (replaceable) |
| Compatibility | Fits QZ/QD bridge cranes & gantry cranes (hook mount) |
| Certification | CE, ISO 9001 |
What information is needed to select the right 5-Tine Rotating Grab Bucket?
Please share the required load, key dimensions, operating frequency, power supply and working environment. Drawings or site photos help us confirm the configuration.
Can the 5-Tine Rotating Grab Bucket be customized?
Yes. Dimensions, materials, speeds, controls and protection options can be matched to the project after technical review.
Tell Us About Your Project
Tell us your lifting requirements and our engineer will recommend a suitable solution.
