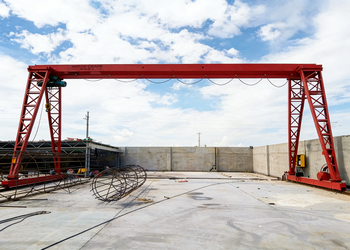

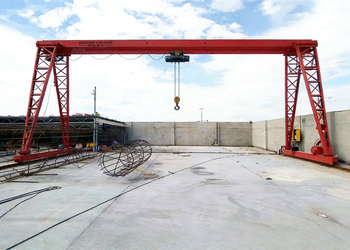

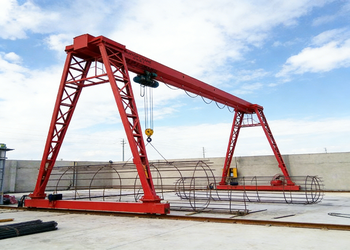

MHsh Double Cantilever Gantry Crane is intended for yards, precast plants, construction sites and other areas where a freestanding runway is preferred. Available configurations include capacity: 3T – 20T; span: 12m – 30m; lifting height: 6m /9m. The final configuration should be matched to the actual load, site layout and operating frequency.
Typical Applications
Yards, precast plants, construction sites and other areas where a freestanding runway is preferred.
What to Confirm Before Ordering
- Confirm rated load, travel range and required lifting height.
- Share the site layout, available headroom and power supply.
- Specify duty cycle, control method and indoor or outdoor conditions.
Send us your project requirements and available drawings. Our engineers will check the main dimensions, duty class and safety configuration before quotation.
| Can't lift outside the crane legs | → Cantilevers on BOTH sides – lift under the beam AND beyond both legs |
|---|---|
| Wasted space beside the crane | → Covers 30% more area vs. standard gantry – no dead zones |
| Need to load/unload trucks on both sides | → Reach left side → cross span → reach right side. One crane does it all |
| Rated Lifting Capacity | 3T - 20T |
| Span Length | 12m - 30m |
| Lifting Height | 6m /9m |
| Working Class | A3 |
| Lifting Speed | Single speed: 3.5m/min - 8m/min |
| Trolley Traveling Speed | 20m/min |
| Crane Traveling Speed | 20m-30m/min |
| Control Mode | Ground pendant control/ Cab Control |
| Power Supply | 380V/50Hz/3Phase /Customizable |
| Girder Material | Q235B High-Strength Structural Steel |
| Working Temperature | -20℃ - +45℃ |
| Protection Grade | IP44 (Standard) |
What information is needed to select the right MHsh Double Cantilever Gantry Crane?
Please share the required load, key dimensions, operating frequency, power supply and working environment. Drawings or site photos help us confirm the configuration.
Can the MHsh Double Cantilever Gantry Crane be customized?
Yes. Dimensions, materials, speeds, controls and protection options can be matched to the project after technical review.
