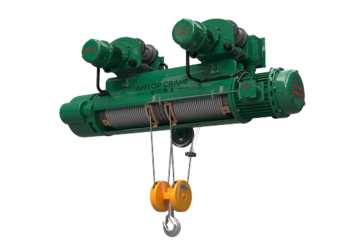

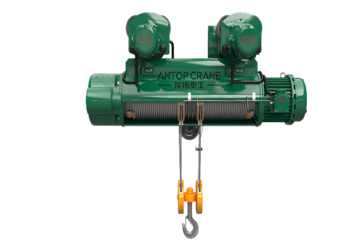

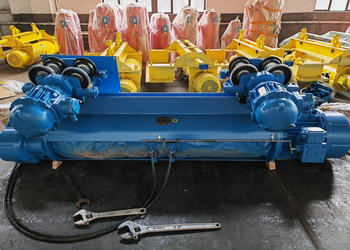

M3 / M4 Explosion-Proof Hoist (BCD Series) is intended for cranes and monorails that need compact, controlled lifting. Available configurations include capacity: 16-32T; lifting height: 9m – 24m. The final configuration should be matched to the actual load, site layout and operating frequency.
Typical Applications
Cranes and monorails that need compact, controlled lifting.
What to Confirm Before Ordering
- Confirm rated load, travel range and required lifting height.
- Share the site layout, available headroom and power supply.
- Specify duty cycle, control method and indoor or outdoor conditions.
Send us your project requirements and available drawings. Our engineers will check the main dimensions, duty class and safety configuration before quotation.
| Surface stays cool | Max 135°C surface temp (T4 rating) → won't ignite common industrial gases |
|---|---|
| Two speed options | • BCD / FMBCD : Single speed – simple, cost-effective • BCDS / FMBCDS : Dual speed – slow creep for precise positioning in sensitive areas |
| Full certification | ATEX + IECEx + GB3836 certificates provided with every unit |
| Rated Lifting Capacity | 16-32T |
| track | 50a-63a |
| Lifting Height | 9m - 24m |
| Working Class | M4 |
| Lifting Speed | 0.3-3(m/min) |
| Trolley Traveling Speed | 20m/min |
| Lifting Power | 3.0/18.5kW |
| Traveling Power | 0.75*3kW |
| Power Supply | 380V/50Hz/3Phase /Customizable |
| Control Mode | Ground pendant control/Remote control |
| Working Temperature | -20℃ - +45℃ |
| Protection Grade | IP44 (Standard) |
What information is needed to select the right M3 / M4 Explosion-Proof Hoist (BCD Series)?
Please share the required load, key dimensions, operating frequency, power supply and working environment. Drawings or site photos help us confirm the configuration.
Can the M3 / M4 Explosion-Proof Hoist (BCD Series) be customized?
Yes. Dimensions, materials, speeds, controls and protection options can be matched to the project after technical review.
