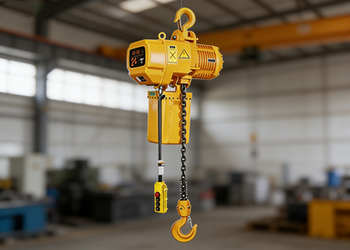

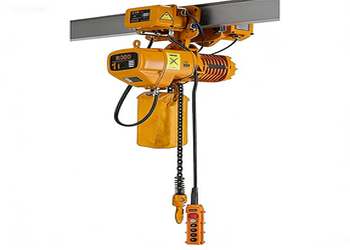

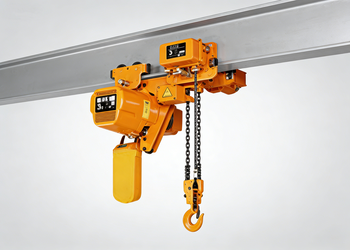

Ultra Low Headroom Chain Hoist is intended for cranes and monorails that need compact, controlled lifting. Available configurations include capacity: 0.5T – 3T; lifting height: 3m – 12m. The final configuration should be matched to the actual load, site layout and operating frequency.
Typical Applications
Cranes and monorails that need compact, controlled lifting.
What to Confirm Before Ordering
- Confirm rated load, travel range and required lifting height.
- Share the site layout, available headroom and power supply.
- Specify duty cycle, control method and indoor or outdoor conditions.
Send us your project requirements and available drawings. Our engineers will check the main dimensions, duty class and safety configuration before quotation.
| Workshop height only 3–4m – normal hoist won't fit | → Ultra compact design – only 0.35m headroom needed (vs. 0.8m+ for normal hoists) |
|---|---|
| Wire rope hoist too tall for container/vehicle use | → Shortest chain hoist available – works inside containers, trucks, basements |
| Frequent wire rope replacement | → Grade 80 alloy chain – lasts 2–3x longer, no snapping |
| Rated Lifting Capacity | 0.5T - 3T |
| Lifting Height | 3m - 12m |
| Working Class | M3 |
| Lifting Speed | Single speed:4.4m/min - 6.8m/min |
| Trolley Traveling Speed | 11/21m/min |
| Crane Traveling Speed | 30m/min |
| Control Mode | Ground pendant control/Remote control |
| Power Supply | 380V/50Hz/3Phase /Customizable |
| Girder Material | Q235B High-Strength Structural Steel |
| Working Temperature | -20℃ - +45℃ |
| Protection Grade | IP44 (Standard) |
What information is needed to select the right Ultra Low Headroom Chain Hoist?
Please share the required load, key dimensions, operating frequency, power supply and working environment. Drawings or site photos help us confirm the configuration.
Can the Ultra Low Headroom Chain Hoist be customized?
Yes. Dimensions, materials, speeds, controls and protection options can be matched to the project after technical review.
Tell Us About Your Project
Tell us your lifting requirements and our engineer will recommend a suitable solution.
