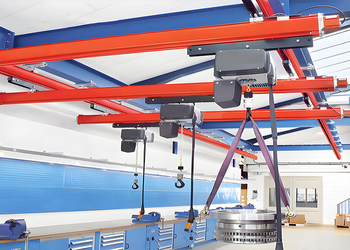

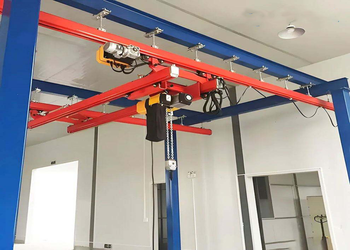

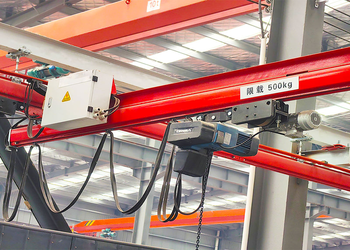

Light Flexible Crane is intended for workstations and assembly areas that need ergonomic, flexible load handling. Available configurations include capacity: 125 kg – 2,000 kg (0.125–2 tons); span: 3 – 15 m; lifting height: 2 – 8 m. The final configuration should be matched to the actual load, site layout and operating frequency.
Typical Applications
Workstations and assembly areas that need ergonomic, flexible load handling.
What to Confirm Before Ordering
- Confirm rated load, travel range and required lifting height.
- Share the site layout, available headroom and power supply.
- Specify duty cycle, control method and indoor or outdoor conditions.
Send us your project requirements and available drawings. Our engineers will check the main dimensions, duty class and safety configuration before quotation.
| Need crane at 2–3 stations but can't afford 3 cranes | Switch trolley between parallel tracks – one crane serves multiple bays |
|---|---|
| Fixed crane wastes money when layout changes | Modular design – add/remove tracks later. Reconfigure in hours |
| Capacity | 125 kg – 2,000 kg (0.125–2 tons) |
| Track Material | Aluminum (≤1t) / Steel (1–2t) |
| Track Layout | 2–4 parallel tracks + transfer switches |
| Span per Track | 3 – 15 m |
| Total Coverage | Up to 50 m (combined tracks) |
| Lifting Height | 2 – 8 m |
| Travel Mode | Manual push (≤500kg) / Motorized (≥1t) |
| Power | 380V 3-phase (hoist only) |
| Certification | CE, ISO 9001 |
What information is needed to select the right Light Flexible Crane?
Please share the required load, key dimensions, operating frequency, power supply and working environment. Drawings or site photos help us confirm the configuration.
Can the Light Flexible Crane be customized?
Yes. Dimensions, materials, speeds, controls and protection options can be matched to the project after technical review.
Tell Us About Your Project
Tell us your lifting requirements and our engineer will recommend a suitable solution.
