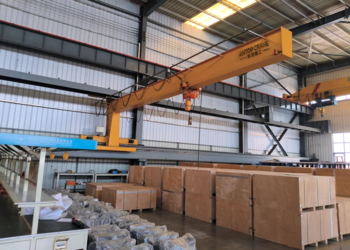

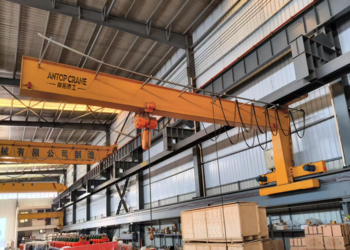

JIB Wall-Mounted Crane is intended for workstations and assembly areas that need ergonomic, flexible load handling. Available configurations include capacity: 0.5T – 5T; span: 3m – 8m; lifting height: 3m – 12m. The final configuration should be matched to the actual load, site layout and operating frequency.
Typical Applications
Workstations and assembly areas that need ergonomic, flexible load handling.
What to Confirm Before Ordering
- Confirm rated load, travel range and required lifting height.
- Share the site layout, available headroom and power supply.
- Specify duty cycle, control method and indoor or outdoor conditions.
Send us your project requirements and available drawings. Our engineers will check the main dimensions, duty class and safety configuration before quotation.
| No room for crane columns on floor | Mounts on wall – runs along wall-mounted rail. Floor stays 100% free |
|---|---|
| Workshop too narrow for bridge crane | Works in aisles as narrow as 3m – no need for wide open space |
| Rated Lifting Capacity | 0.5T - 5T |
| Span Length | 3m - 8m |
| Lifting Height | 3m - 12m |
| Working Class | A3 - A5 |
| Lifting Speed | Single speed: (0.8m/min -8m/min) |
| Trolley Traveling Speed | 20m/min |
| Crane Traveling Speed | 0-8m/min |
| Control Mode | Ground pendant control/Remote control |
| Power Supply | 380V/50Hz/3Phase /Customizable |
| Girder Material | Q235B High-Strength Structural Steel |
| Working Temperature | -20℃ - +45℃ |
| Protection Grade | IP44 (Standard) |
What information is needed to select the right JIB Wall-Mounted Crane?
Please share the required load, key dimensions, operating frequency, power supply and working environment. Drawings or site photos help us confirm the configuration.
Can the JIB Wall-Mounted Crane be customized?
Yes. Dimensions, materials, speeds, controls and protection options can be matched to the project after technical review.
Tell Us About Your Project
Tell us your lifting requirements and our engineer will recommend a suitable solution.
