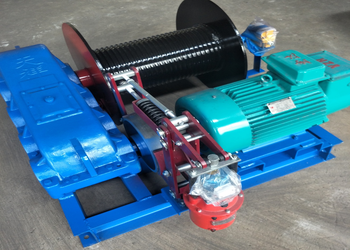

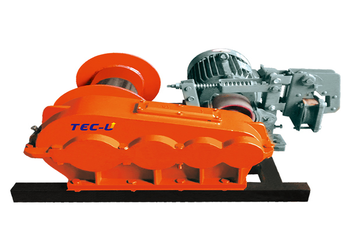

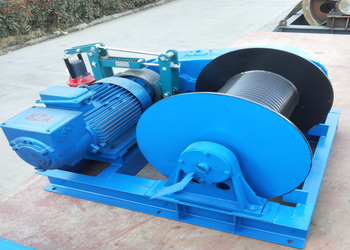

JM Slow-Speed Electric Winch is intended for industrial pulling, positioning and lifting duties. Available configurations include capacity: JM5 / JM10 / JM16 / JM20 / JM30 / JM50 (5–50 tons rated pull). The final configuration should be matched to the actual load, site layout and operating frequency.
Typical Applications
Industrial pulling, positioning and lifting duties.
What to Confirm Before Ordering
- Confirm rated load, travel range and required lifting height.
- Share the site layout, available headroom and power supply.
- Specify duty cycle, control method and indoor or outdoor conditions.
Send us your project requirements and available drawings. Our engineers will check the main dimensions, duty class and safety configuration before quotation.
| Need to pull heavy loads slowly & safely | Slow speed + high torque – pulls 5–50 tons steadily (no jerking) |
|---|---|
| Complex controls = operator errors | 3-button pendant – Forward / Stop / Reverse. Anyone can operate safely |
| Capacity | JM5 / JM10 / JM16 / JM20 / JM30 / JM50 (5–50 tons rated pull) |
| Rope Capacity | 200 – 600 m (depends on drum size & rope diameter) |
| Pulling Speed | 7 – 13 m/min (slow = safe for heavy loads) |
| Motor Power | 7.5 – 45 kW (380V 3-phase) |
| Brake Type | Electromagnetic brake (auto-engages when power off) |
| Drum Type | Single drum (standard) / Double drum (pull two directions – optional) |
| Protection | IP54 (dust & water resistant) |
| Certification | CE, ISO 9001 |
What information is needed to select the right JM Slow-Speed Electric Winch?
Please share the required load, key dimensions, operating frequency, power supply and working environment. Drawings or site photos help us confirm the configuration.
Can the JM Slow-Speed Electric Winch be customized?
Yes. Dimensions, materials, speeds, controls and protection options can be matched to the project after technical review.
Tell Us About Your Project
Tell us your lifting requirements and our engineer will recommend a suitable solution.
