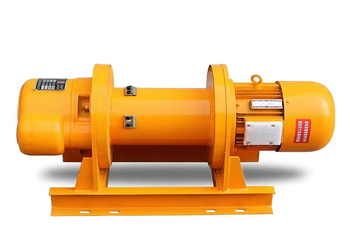

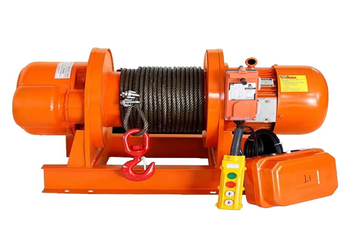

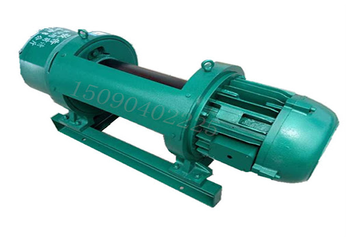

JK Fast-Speed Electric Winch is intended for industrial pulling, positioning and lifting duties. Available configurations include capacity: JK0.5 / JK1 / JK2 / JK3 / JK5 (0.5–5 tons rated lift). The final configuration should be matched to the actual load, site layout and operating frequency.
Typical Applications
Industrial pulling, positioning and lifting duties.
What to Confirm Before Ordering
- Confirm rated load, travel range and required lifting height.
- Share the site layout, available headroom and power supply.
- Specify duty cycle, control method and indoor or outdoor conditions.
Send us your project requirements and available drawings. Our engineers will check the main dimensions, duty class and safety configuration before quotation.
| Need to lift tools/materials to upper floors fast | High speed (20–40 m/min) – 3x faster than slow winches. Saves time on every lift |
|---|---|
| No space for big crane on small site | Compact size – fits in stairwells, elevator shafts, narrow construction zones |
| Budget tight for full crane system | Lowest cost vertical lifter – ideal for ≤5 ton jobs where crane is overkill |
| Capacity | JK0.5 / JK1 / JK2 / JK3 / JK5 (0.5–5 tons rated lift) |
| Lifting Speed | 20 – 40 m/min (fast = more lifts per hour) |
| Rope Capacity | 150 – 400 m (on drum, Ø8–14mm rope) |
| Motor Power | 3 – 11 kW (380V 3-phase) |
| Brake Type | Electromagnetic brake (auto-locks when power off – safe) |
| Drum Type | Single drum with rope guide (prevents cross-winding) |
| Protection | IP54 (dust & splash resistant) |
What information is needed to select the right JK Fast-Speed Electric Winch?
Please share the required load, key dimensions, operating frequency, power supply and working environment. Drawings or site photos help us confirm the configuration.
Can the JK Fast-Speed Electric Winch be customized?
Yes. Dimensions, materials, speeds, controls and protection options can be matched to the project after technical review.
Tell Us About Your Project
Tell us your lifting requirements and our engineer will recommend a suitable solution.
