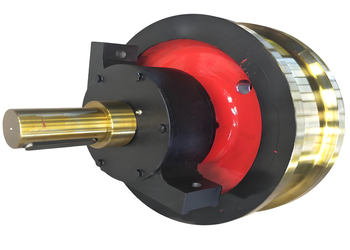

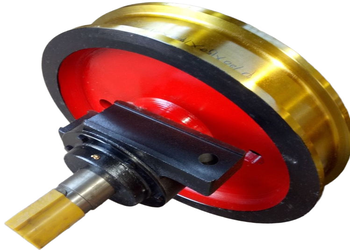

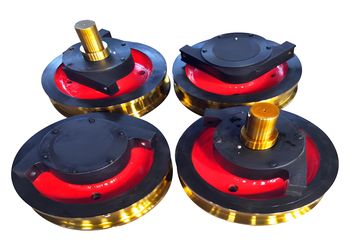

Crane Wheel Assembly is intended for crane maintenance, modernization and system integration. Available configurations include capacity: 1 – 100 tons per wheel set. The final configuration should be matched to the actual load, site layout and operating frequency.
Typical Applications
Crane maintenance, modernization and system integration.
What to Confirm Before Ordering
- Confirm the required dimensions, load rating and connection details.
- Share equipment drawings or clear photos so interfaces can be checked.
- Specify the working environment, operating frequency and required standards.
Send us your project requirements and available drawings. Our engineers will check the main dimensions, duty class and safety configuration before quotation.
| Soft steel flat spots in 6 months → crane shakes | 42CrMo forged + quenched – surface hardness HRC 45-50 → lasts 5+ years |
|---|---|
| No seal bearing rusts → wheel seizes | Double-sealed bearings – keeps water/dust out, even in wet yards |
| Capacity Range | 1 – 100 tons per wheel set |
| Wheel Material | 42CrMo / 60# forged alloy steel |
| Surface Hardness | HRC 45–50 (quenched & tempered) |
| Bearing Type | Deep groove ball bearing (standard) / Tapered roller (≥32t cranes) |
| Wheel Types | • Single flange (prevents derailment) • Double flange (heavy-duty curves) • Flat (straight travel only) |
| Certification | ISO 9001, Third-party hardness test report |
What information is needed to select the right Crane Wheel Assembly?
Please share the required load, key dimensions, operating frequency, power supply and working environment. Drawings or site photos help us confirm the configuration.
Can the Crane Wheel Assembly be customized?
Yes. Dimensions, materials, speeds, controls and protection options can be matched to the project after technical review.
Tell Us About Your Project
Tell us your lifting requirements and our engineer will recommend a suitable solution.
