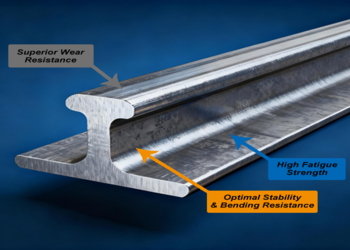

Crane Rail System is intended for crane maintenance, modernization and system integration. Available configurations include span: Precision straightness (≤2mm/2m) + guide wheels optional → zero derailment. The final configuration should be matched to the actual load, site layout and operating frequency.
Typical Applications
Crane maintenance, modernization and system integration.
What to Confirm Before Ordering
- Confirm the required dimensions, load rating and connection details.
- Share equipment drawings or clear photos so interfaces can be checked.
- Specify the working environment, operating frequency and required standards.
Send us your project requirements and available drawings. Our engineers will check the main dimensions, duty class and safety configuration before quotation.
| Rail bends under load → crane shakes | QU70/QU80/QU100 crane-specific rail – hardened steel, zero deformation under full load |
|---|---|
| Derailment risk on long spans | Precision straightness (≤2mm/2m) + guide wheels optional → zero derailment |

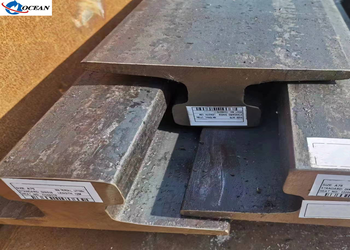

| Rail Types | QU70 / QU80 / QU100 / QU120 (crane-specific) P38 / P43 / P50 (standard railway rail – budget option) |
| Material | U71Mn high-carbon steel (hardened, wear-resistant) |

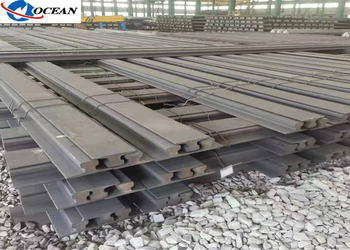

| Length | 6 m / 9 m / 12 m per piece (custom cutting available) |
| Surface | Hot-rolled (standard) / Pre-galvanized (coastal sites) |
| Certification | GB/T 18362, ISO 9001 |
What information is needed to select the right Crane Rail System?
Please share the required load, key dimensions, operating frequency, power supply and working environment. Drawings or site photos help us confirm the configuration.
Can the Crane Rail System be customized?
Yes. Dimensions, materials, speeds, controls and protection options can be matched to the project after technical review.
