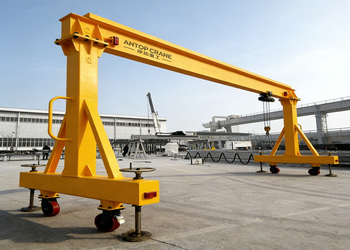

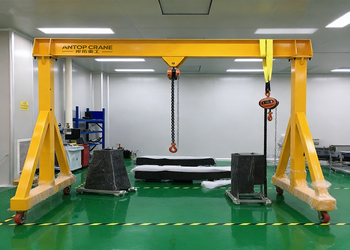

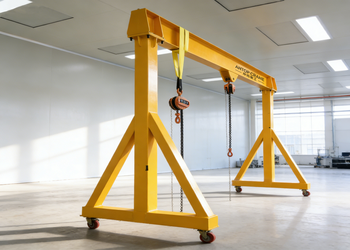

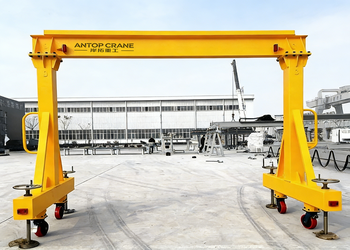

Small Gantry Crane is a light-duty lifting solution for workshop and warehouse use.
| Item | Description |
|---|---|
| Product | Small Gantry Crane |
| Capacity | 0.5–5 ton |
| Advantage | Simple design, movable, cost-effective |
| Use | Workshop & warehouse |
|
Parameter
|
Range/Details
|
|---|---|
|
Rated Lifting Capacity
|
1T – 10T
|
|
Span Length
|
3m – 24m
|
|
Lifting Height
|
3m – 12m
|
|
Working Class
|
A3 – A4
|
|
Lifting Speed
|
Single speed: 3m/min – 8m/min; Dual speed optional (0.8m/min -8m/min)
|
|
Trolley Traveling Speed
|
20m/min
|
|
Crane Traveling Speed
|
30m/min
|
|
Control Mode
|
Ground pendant control/Remote control
|
|
Power Supply
|
380V/50Hz/3Phase /Customizable
|
|
Girder Material
|
Q235B High-Strength Structural Steel
|
|
Working Temperature
|
-20℃ – +45℃
|
|
Protection Grade
|
IP44 (Standard); IP65 optional for dusty/humid environments
|
