35+ Years
Industry Expertise
120,000 m²
Modern Manufacturing Base
8,000+ Cases
Global Safe Deliveries
Industry Expertise
Modern Manufacturing Base
Global Safe Deliveries
|
Problem
|
MHT Solution
|
|---|---|
|
“No time/money for concrete rails”
|

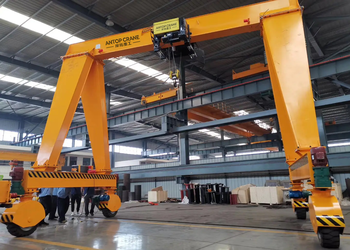

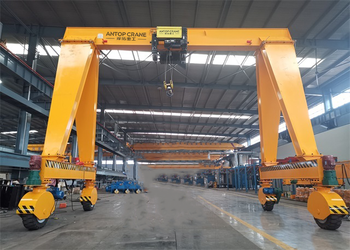

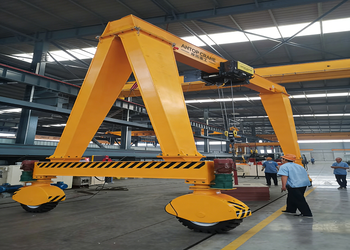

Rubber tires – works on flat ground. No rails, no foundation
|
|
“Need crane for temporary site”
|
Drive it like a vehicle. Move between sites in 1 hour
|
|
“Waiting weeks for rail installation”
|
Unload → Plug power → Lift. Ready in 4–6 hours
|
|
Parameter
|
Range/Details
|
|---|---|
|
Rated Lifting Capacity
|
5T – 20T
|
|
Span Length
|
6m – 24m
|
|
Lifting Height
|
6m – 12m
|
|
Working Class
|
A3 – A5
|
|
Lifting Speed
|
Single speed: 0.8m/min – 5m/min
|
|
Trolley Traveling Speed
|
0-20m/min
|
|
Crane Traveling Speed
|
0-10m/min
|
|
Control Mode
|
Remote control
|
|
Power Supply
|
380V/50Hz/3Phase /Customizable
|
|
Girder Material
|
Q235B High-Strength Structural Steel
|
|
Working Temperature
|
-20℃ – +45℃
|
|
Protection Grade
|
IP44 (Standard); IP65 optional for dusty/humid environments
|
Not sure which product fits your needs?
Submit the form below and our engineers will design a customized solution for you at no extra cost.
