Problem
|
MHBS Solution
|
|---|---|
|
Yard has wall/rail on one side only
|

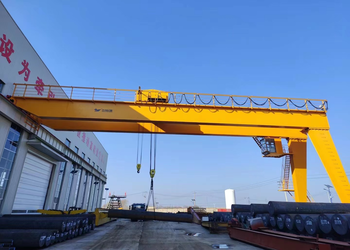

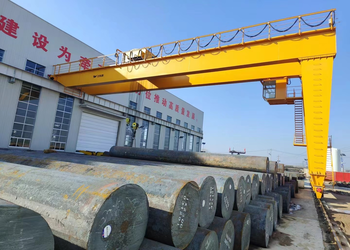

Semi-gantry design: one leg on ground, one leg on existing wall/column/rail
|
|
Full gantry too wide for my site
|
Uses 50% less ground space – ideal for narrow yards, railway sidings, factory edges
|
|
Wasted space beside building
|
Turns dead edge zones into lifting areas – no extra land needed
|
|
Parameter
|
Range/Details
|
|---|---|
|
Rated Lifting Capacity
|
5T – 50T
|
|
Span Length
|
6m – 24m
|
|
Lifting Height
|
3m – 12m
|
|
Working Class
|
A3 – A4
|
|
Lifting Speed
|
Single speed: 3m/min – 8m/min; Dual speed optional (0.8m/min -8m/min)
|
|
Trolley Traveling Speed
|
0-20m/min
|
|
Crane Traveling Speed
|
0-10m/min
|
|
Control Mode
|
Ground pendant control/Remote control/Cab Control
|
|
Power Supply
|
380V/50Hz/3Phase /Customizable
|
|
Girder Material
|
Q235B High-Strength Structural Steel
|
|
Working Temperature
|
-20℃ – +45℃
|
|
Protection Grade
|
IP44 (Standard); IP65optional for dusty/humid environments
|
