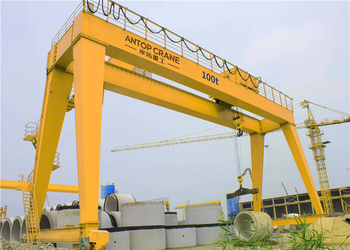

Heavy Duty • Double Girder • Outdoor Workhorse • 100% New
|
Need
|
MG Solution
|
|---|---|
|
“Lifting >10 tons outdoors”
|
Double girder design – handles 10–100 tons reliably
|
|
“Big yard, big span needed”
|
Spans up to 50m+ – covers large stockpiles & container areas
|
|
“24/7 heavy use in tough conditions”
|
A5–A6 duty class – built for daily heavy lifting, rain or shine
|
|
Parameter
|
Range/Details
|
|---|---|
|
Rated Lifting Capacity
|
5T – 200T
|
|
Span Length
|
18m – 40m
|
|
Lifting Height
|
6m – 12m
|
|
Working Class
|
A5 – A6
|
|
Lifting Speed
|
Single speed: 2m/min – 12m/min
|
|
Trolley Traveling Speed
|
20-40m/min
|
|
Crane Traveling Speed
|
20-40m/min
|
|
Control Mode
|

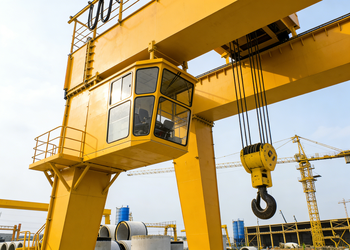

Ground pendant control/Cab control
|
|
Power Supply
|
380V/50Hz/3Phase /Customizable
|
|
Girder Material
|
Q235B High-Strength Structural Steel
|
|
Working Temperature
|
-20℃ – +45℃
|
|
Protection Grade
|
IP44 (Standard); IP65 optional for dusty/humid environments
|
