Move Sideways + Lift Up · One Beam, Full Coverage · Plug & Play
|
Fixed Hoist
|

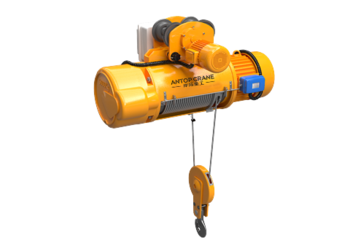

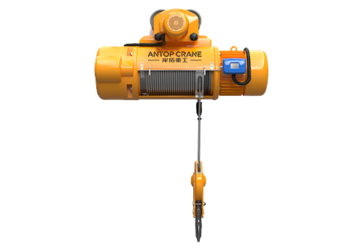

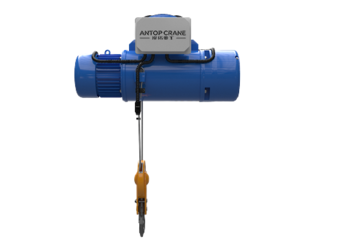

Our Traveling-Type Hoist
|
|---|---|
|
Lifts only in one spot
|
Moves along beam – cover 5–20m of workspace with one hoist
|
|
Need bridge crane for coverage
|
One beam only – 60% cheaper than bridge crane systems
|
|
Manual pushing = slow & unsafe
|
Electric trolley – smooth travel at 20 m/min with push-button control
|
|
Limited flexibility
|
Reposition in seconds – serve multiple workstations with one unit
|
|
Parameter
|
Range/Details
|
|---|---|
|
Rated Lifting Capacity
|
1-32T
|
|
track
|
50a-63a |
|
Lifting Height
|
9m – 24m
|
|
Working Class
|
M4
|
|
Lifting Speed
|
0.3/3(m/min)
|
|
Trolley Traveling Speed
|
20m/min
|
|
Lifting Power
|
3.0/18.5kW |
| Traveling Power |
0.75*3kW
|
|
Power Supply
|
380V/50Hz/3Phase /Customizable
|
|
Control Mode
|
Ground pendant control/Remote control
|
|
Working Temperature
|
-20℃ – +45℃
|
|
Protection Grade
|
IP44 (Standard); IP65 optional for dusty/humid environments
|
