Compact / Low Headroom Hoist
|

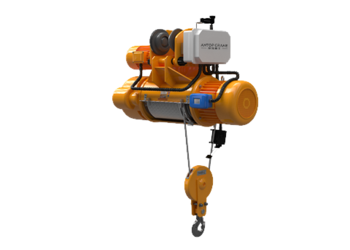

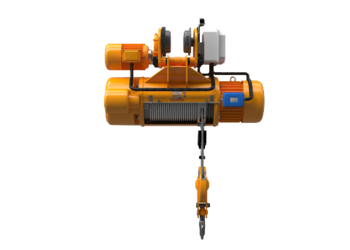

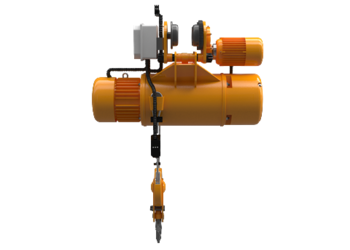

Our Long-Type Hoist
|
|---|---|
|
Rope winds in 2–3 layers → inner layers crush outer layers
|
Single-layer winding → rope lies flat, no crushing, 2× longer rope life
|
|
Needs only 600mm headroom (good for low ceilings)
|
Needs 900mm+ headroom (ideal for tall factories, warehouses, aircraft hangars)
|
|
Faster rope wear → frequent replacements
|
Gentle on rope → lower maintenance cost over time
|
|
Complex multi-layer guide system
|
Simple design → fewer parts, easier service
|
|
Parameter
|
Range/Details
|
|---|---|
|
Rated Lifting Capacity
|
16-32T
|
|
track
|
50a-63a |
|
Lifting Height
|
9m – 24m
|
|
Working Class
|
M4
|
|
Lifting Speed
|
0.3/3(m/min)
|
|
Trolley Traveling Speed
|
20m/min
|
|
Lifting Power
|
3.0/18.5kW |
| Traveling Power |
0.75*3kW
|
|
Power Supply
|
380V/50Hz/3Phase /Customizable
|
|
Control Mode
|
Ground pendant control/Remote control
|
|
Working Temperature
|
-20℃ – +45℃
|
|
Protection Grade
|
IP44 (Standard); IP65 optional for dusty/humid environments
|
