Your Need
|
Our Solution
|
|---|---|
|
Explosive environment (paint shop, chemical plant, oil warehouse)
|
→ Full explosion-proof design: motors, electrical box, switches all certified Ex d IIB T4
|
|
No floor space for columns
|

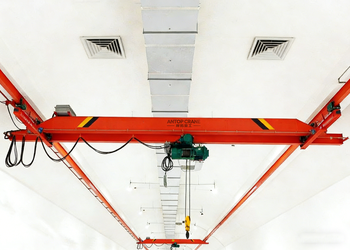

→ Hangs from roof beams. Zero ground footprint
|
|
Fast & safe installation
|
→ 5 days to install. No foundation. Ready to lift safely
|
|
Parameter
|
Range/Details
|
|---|---|
|
Rated Lifting Capacity
|
1T – 10T
|
|
Span Length
|
3m – 28m
|
|
Lifting Height
|
3m – 18m
|
|
Working Class
|
A3 – A5
|
|
Lifting Speed
|
Single speed: 3m/min – 8m/min; Dual speed optional (0.8m/min -8m/min)
|
|
Trolley Traveling Speed
|
20m/min
|
|
Crane Traveling Speed
|
30m/min
|
|
Control Mode
|
Ground pendant control
|
|
Power Supply
|
380V/50Hz/3Phase /Customizable
|
|
Explosion proof grade
|
Exdll BT4/CT4 GB
|
|
Working Temperature
|
-20℃ – +45℃
|
|
Protection Grade
|
IP44 (Standard); IP65 optional for dusty/humid environments
|
