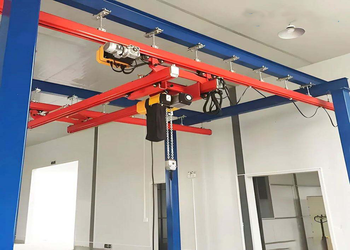

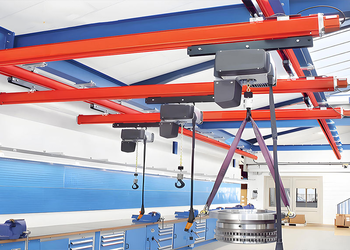

This light flexible crane uses a modular cross track system that allows one crane to serve multiple workstations. The lightweight structure ensures smooth manual movement, fast installation, and easy future expansion for changing layouts.
|
Problem
|
Cross-Track Solution
|
|---|---|
|
Need crane at 2–3 stations but can’t afford 3 cranes
|
Switch trolley between parallel tracks – one crane serves multiple bays
|
|
Fixed crane wastes money when layout changes
|
Modular design – add/remove tracks later. Reconfigure in hours
|
|
Columns block workflow”
|
Hangs from ceiling beams. Zero floor footprint
|
|
Item
|
Details
|
|---|---|
|
Capacity
|
125 kg – 2,000 kg (0.125–2 tons)
|
|
Track Material
|
Aluminum (≤1t) / Steel (1–2t)
|
|
Track Layout
|
2–4 parallel tracks + transfer switches
|
|
Span per Track
|
3 – 15 m
|
|
Total Coverage
|
Up to 50 m (combined tracks)
|
|
Lifting Height
|
2 – 8 m
|
|
Travel Mode
|
Manual push (≤500kg) / Motorized (≥1t)
|
|
Power
|
380V 3-phase (hoist only)
|
|
Certification
|
CE, ISO 9001
|
