Need
|

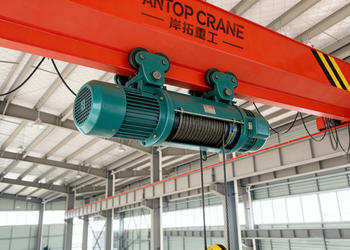

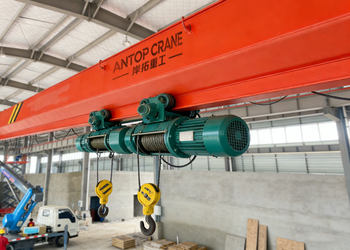

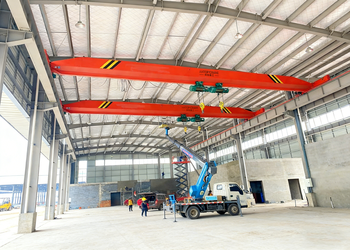

LDE Double Hoist Solution
|
|---|---|
|
“Sometimes I lift two small items at once”
|
→ Run two hoists independently – double your speed, no second crane needed
|
|
“Sometimes I lift one long/heavy item”
|
→ Run both hoists together – share the load safely (e.g., 5t + 5t = 10t long beam)
|
|
“Don’t want to buy two cranes”
|
→ One crane does both jobs. Saves 40% cost vs. two single-hoist cranes
|
|
Parameter
|
Range/Details
|
|---|---|
|
Rated Lifting Capacity
|
1+1T – 16+16T
|
|
Span Length
|
7.5m – 31.5m
|
|
Lifting Height
|
6m – 30m
|
|
Working Class
|
A3 – A5
|
|
Lifting Speed
|
Single speed: 3m/min – 8m/min; Dual speed optional (0.8m/min -8m/min)
|
|
Trolley Traveling Speed
|
20m/min
|
|
Crane Traveling Speed
|
30m/min
|
|
Control Mode
|
Handle/Remote control
|
|
Power Supply
|
380V/50Hz/3Phase /Customizable
|
|
Girder Material
|
Q235B High-Strength Structural Steel
|
|
Working Temperature
|
-20℃ – +45℃
|
|
Protection Grade
|
IP44 (Standard); IP65 optional for dusty/humid environments
|
