Quick Lifting • Compact • Perfect for Material Hoisting • 100% New

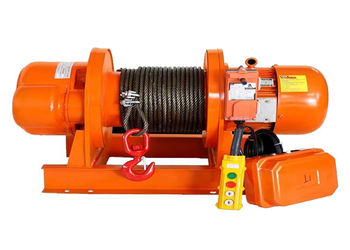

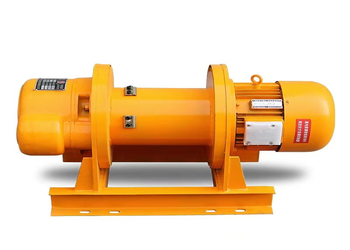

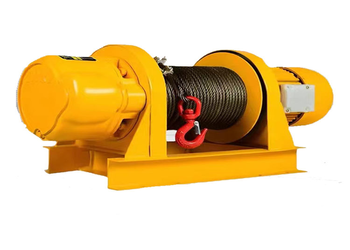

The ANTOP JK Fast-Speed Electric Winch is designed for high-efficiency lifting with speeds up to 40 meters per minute. This compact JK Fast-Speed Electric Winch is the perfect solution for construction sites and mine hoisting where time is critical. Built for heavy-duty use, it features a precision braking system and a reliable motor to ensure safe, fast material handling in narrow work zones.
|
Problem
|
JK Winch Solution
|
|---|---|
|
Need to lift tools/materials to upper floors fast
|
High speed (20–40 m/min) – 3x faster than slow winches. Saves time on every lift
|
|
No space for big crane on small site
|
Compact size – fits in stairwells, elevator shafts, narrow construction zones
|
|
Budget tight for full crane system
|
Lowest cost vertical lifter – ideal for ≤5 ton jobs where crane is overkill
|
|
Item
|
Details
|
|---|---|
|
Capacity
|
JK0.5 / JK1 / JK2 / JK3 / JK5 (0.5–5 tons rated lift)
|
|
Lifting Speed
|
20 – 40 m/min (fast = more lifts per hour)
|
|
Rope Capacity
|
150 – 400 m (on drum, Ø8–14mm rope)
|
|
Motor Power
|
3 – 11 kW (380V 3-phase)
|
|
Brake Type
|
Electromagnetic brake (auto-locks when power off – safe)
|
|
Drum Type
|
Single drum with rope guide (prevents cross-winding)
|
|
Mounting
|
Floor base with anchor holes / Wall bracket (optional)
|
|
Protection
|
IP54 (dust & splash resistant)
|
