Hardened Alloy Steel • 50,000+ Hours Life • Plug & Replace • 100% New

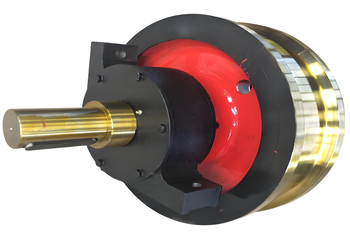

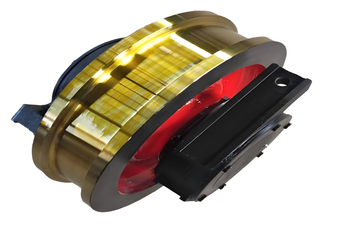

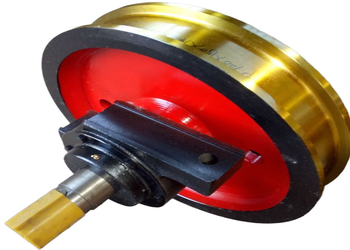

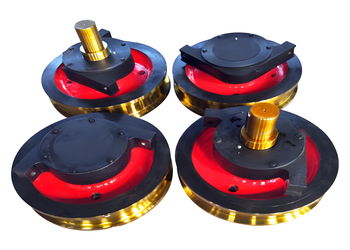

This crane wheel assembly is designed for overhead and gantry crane travel systems, providing stable running, reduced vibration, and reliable performance under continuous operation.
|
Cheap Wheel Problem
|
Our Wheel Solution
|
|---|---|
|
Soft steel flat spots in 6 months → crane shakes
|
42CrMo forged + quenched – surface hardness HRC 45-50 → lasts 5+ years
|
|
No seal bearing rusts → wheel seizes
|
Double-sealed bearings – keeps water/dust out, even in wet yards
|
|
Wrong fit constant adjustment
|
Precision machined (±0.05mm) – bolts on, runs smooth first time
|
|
Item
|
Details
|
|---|---|
|
Capacity Range
|
1 – 100 tons per wheel set
|
|
Wheel Material
|
42CrMo / 60# forged alloy steel
|
|
Surface Hardness
|
HRC 45–50 (quenched & tempered)
|
|
Bearing Type
|
Deep groove ball bearing (standard) / Tapered roller (≥32t cranes)
|
|
Bearing Seal
|
Double lip seal (keeps water/dust out)
|
|
Wheel Types
|
• Single flange (prevents derailment)
• Double flange (heavy-duty curves) • Flat (straight travel only) |
|
Shaft Options
|
Fixed axle / Rotating axle (with bearing housing)
|
|
Certification
|
ISO 9001, Third-party hardness test report
|
