Pre-Engineered for Cranes • 30% Faster Build • One-Stop Solution • 100% New

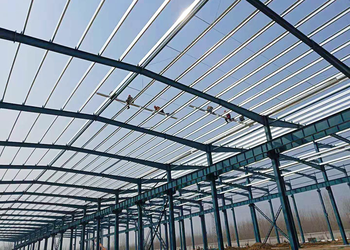

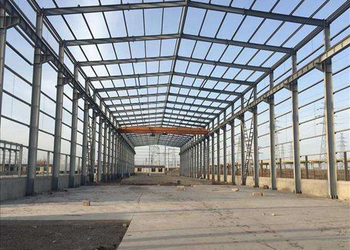

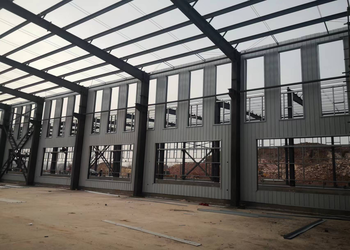

A crane supported steel structure workshop is engineered as a complete system, where the building frame, crane rails and lifting loads are designed together. This integrated approach ensures structural safety, accurate crane alignment and lower steel consumption compared to traditional warehouse buildings.
|
Problem When Buying Separately
|
Our Integrated Solution
|
|---|---|
|
Steel builder didn’t leave space for crane rails → rebuild needed
|
Pre-engineered for your crane – columns, beams, rails designed together. Zero fit errors
|
|
Coordinating 2 suppliers = delays & blame game
|
One supplier, one contract – we deliver crane + building. No coordination headaches
|
|
Building too heavy → wasted steel cost
|
Optimized for crane loads only – 20% less steel vs. generic warehouse design
|
|
Item
|
Details
|
|---|---|
|
Span Width
|
15 – 36 m (single span) / Up to 72 m (multi-span)
|
|
Eave Height
|
8 – 15 m (optimized for your crane lifting height)
|
|
Crane Capacity Supported
|
5 – 50 tons (single crane) / Dual cranes optional
|
|
Main Structure
|
Q355B H-beams (columns & rafters) + crane runway beams
|
|
Wall & Roof
|
Color-coated steel sheets (0.5mm) / Sandwich panels (insulated option)
|
|
Crane Integration
|
• Pre-welded crane brackets on columns
• Rail beam integrated into structure • Power conduit pre-installed along runway |
|
Wind/Seismic
|
Designed to local codes (we ask your location – Brazil/Russia/Bangladesh standards available)
|
|
Certification
|
ISO 9001, Structural calculation report included
|
Not sure which product fits your needs?
Submit the form below and our engineers will design a customized solution for you at no extra cost.
