Precision-Wound • Anti-Slip Grooves • 50,000+ Cycles Life • 100% New

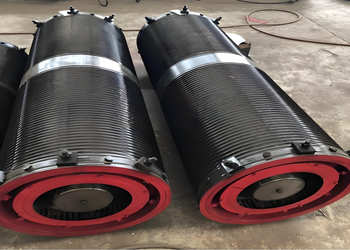

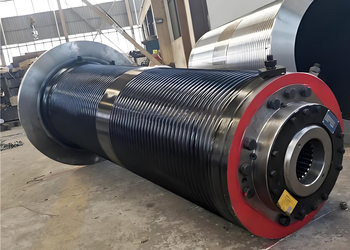

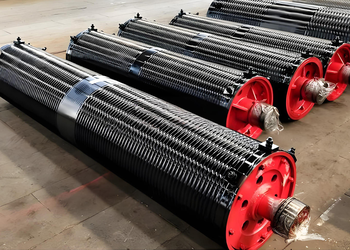

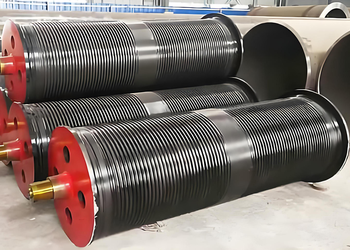

This crane rope drum assembly is used in overhead and gantry crane hoisting systems to guide wire rope winding accurately, reduce wear, and ensure safe and reliable lifting operation
|
Cheap Drum Problem
|
Our Drum Solution
|
|---|---|
|
Smooth surface → rope slips/cross-winds → tangles & breakage
|
→ Precision helical grooves – guides rope layer-by-layer, zero tangling
|
|
Soft steel → grooves wear flat in 1 year → rope damage
|
→ 45# forged steel + surface quenching (HRC 40-45) – lasts 5+ years
|
|
Poor rope fixation → rope end pulls out → dangerous drop
|
→ Double safety clamps – rope end locked securely, zero slippage
|
|
Item
|
Details
|
|---|---|
|
Capacity Range
|
For 1 – 100 ton hoists
|
|
Drum Material
|
45# forged carbon steel (Q345B optional for heavy duty)
|
|
Surface Hardness
|
HRC 40–45 (quenched groove surface)
|
|
Groove Type
|
Helical V-groove (precision machined, ±0.5mm pitch accuracy)
|
|
Drum Types
|
• Single-layer (light duty)
• Multi-layer (standard for most cranes) • Lebus grooved (heavy duty, zero cross-winding) |
|
Rope Fixation
|
Double clamp plates + set screws (prevents rope end pull-out)
|
|
Flange Height
|
≥2× rope diameter (prevents rope jump-off)
|
|
Certification
|
ISO 9001, Third-party hardness & groove accuracy report
|
