Two-Shell Design • Perfect for Loose Bulk • 50–100 Tons/Hour • 100% New

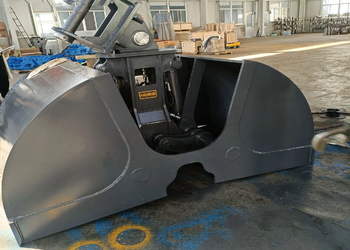

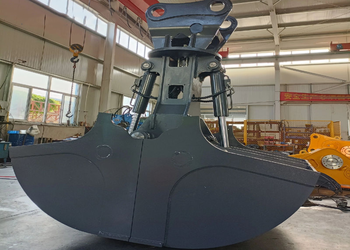

This clamshell grab bucket is widely used for bulk material handling such as coal, sand and grain, helping improve loading efficiency while reducing material spillage during operation.
|
Problem
|
Clamshell Grab Solution
|
|---|---|
|
Shovels too slow for coal/sand
|
Two shells close like jaws – grabs 1–6 m³ per cycle. One button = full load
|
|
Material spills during travel
|
Tight seal when closed – zero spillage, even for fine sand/grain
|
|
Need fast loading/unloading
|
10–15 cycles/hour → moves 80 tons/hour (vs. 10 tons/hour by shovel)
|
|
Item
|
Details
|
|---|---|
|
Capacity
|
1 – 6 m³ (grab volume) / 3 – 25 tons (lifting weight)
|
|
Shell Design
|
Two curved shells (Q345B steel) + replaceable cutting edges
|
|
Operation Types
|
• 2-rope (simple, low cost – for light duty)
• 4-rope (independent open/close – faster, no dead weight) • Ropeless (hydraulic) – for cranes without extra winches |
|
Shell Thickness
|
16 – 30 mm (based on material abrasiveness)
|
|
Cutting Edge
|
Hardened steel teeth (replaceable) – digs into compacted piles
|
|
Compatibility
|
Fits bridge cranes, gantry cranes, port cranes (hook mount)
|
|
Certification
|
CE, ISO 9001
|
