360° Rotation • Perfect for Scrap Steel & Long Materials • Zero Manual Sorting • 100% New

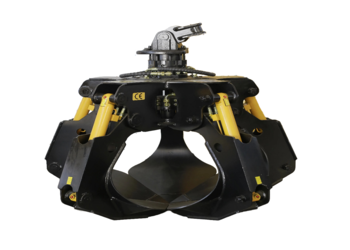

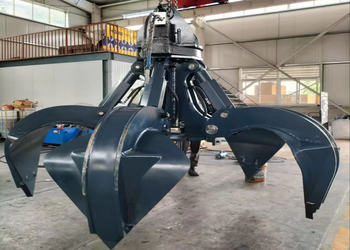

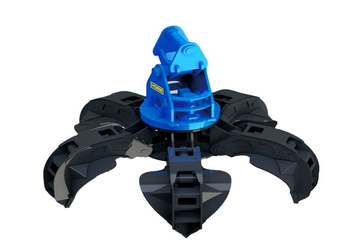

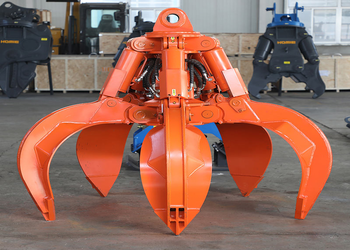

This 5 tine rotating grab bucket is designed for efficient handling of scrap steel and long materials, allowing precise positioning with hydraulic rotation while improving safety and productivity.
|
Problem with Standard Grab
|
Our 5-Tine Rotating Solution
|
|---|---|
|
4-tine grab can’t hold long bars/pipes – they slip out
|
5 curved tines wrap around long/irregular items – secure grip, zero drop
|
|
Need to reposition load manually after lifting
|
360° hydraulic rotation – turn load in air, place exactly where needed
|
|
Sorting scrap steel by hand = slow + dangerous
|
Grab picks mixed scrap → rotate to align → drop neatly. Saves 3 workers
|
|
Item
|
Details
|
|---|---|
|
Capacity
|
3 – 15 m³ (grab volume) / 5 – 25 tons (lifting weight)
|
|
Tine Design
|
5 curved high-strength tines (Q345B steel) + replaceable tips
|
|
Rotation
|
360° continuous hydraulic rotation (±180° per cycle)
|
|
Operation
|
4-rope system (2 ropes lift, 2 ropes open/close + rotate)
|
|
Tine Length
|
1,800 – 3,500 mm (customizable for long materials)
|
|
Wear Protection
|
Hardened tips (HRC 50+) + side plates (replaceable)
|
|
Compatibility
|
Fits QZ/QD bridge cranes & gantry cranes (hook mount)
|
|
Certification
|
CE, ISO 9001
|
