Manual Gantry Crane

Product Introduction

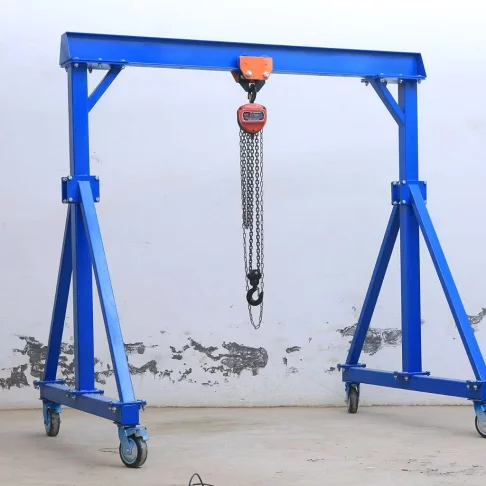

Manual gantry crane is a portable, trackless lightweight lifting equipment equipped with manual chain hoist and hand-push travelling casters. It requires no fixed factory rail or roof beam installation, completely free of civil construction cost. With height-adjustable legs and modular split structure, it can be quickly disassembled, moved and reassembled for temporary and intermittent lifting tasks, the most budget-friendly lifting solution for small workshops, maintenance shops and temporary construction sites.

Core Structural Advantages

1. Height Adjustable Modular Frame It adopts thickened Q235 steel I-beam main girder and A-type reinforced support legs. Lifting height can be adjusted section by section via bolt groups to fit different workshop ceiling heights. All parts are connected by high-strength bolts for fast disassembly and transportation.
2. Full Manual Energy-Free Operation Matched with manual chain hoist and hand push brake casters, no power supply required. Perfect for outdoor sites, power-free workshops and temporary renovation projects without electricity access.
3. Safe Lockable Universal Casters Four heavy-duty nylon casters with independent brake devices. The crane can be locked firmly during lifting to prevent sliding, and pushed freely to any working area after releasing brakes.
4. Low Investment & Zero Civil Work No need to install overhead runway beams or ground rails. Customers save huge reinforcement and track laying costs compared with fixed overhead cranes, with extremely low early investment.

Main Application Scenarios

• Mold repair workshop: Lifting injection molds, stamping molds
• Small machinery factory: Loading and unloading workpieces, equipment assembly
• Auto repair shop: Engine disassembly and vehicle component handling
• Temporary construction site: Small component hoisting without power supply
• Warehouse & hardware store: Short-distance goods stacking and moving

Standard Technical Parameters

• Rated capacity: 0.5t / 1t / 2t / 3t / 5t / 10t (customizable)
• Span range: 2m–8m, customized according to site size
• Adjustable lifting height: 1.5m–6m
• Working class: A2/A3 light intermittent duty

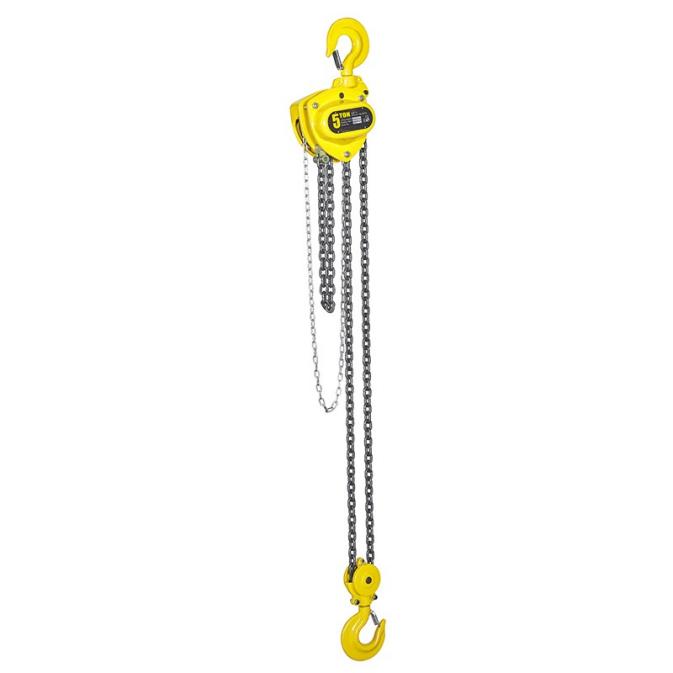

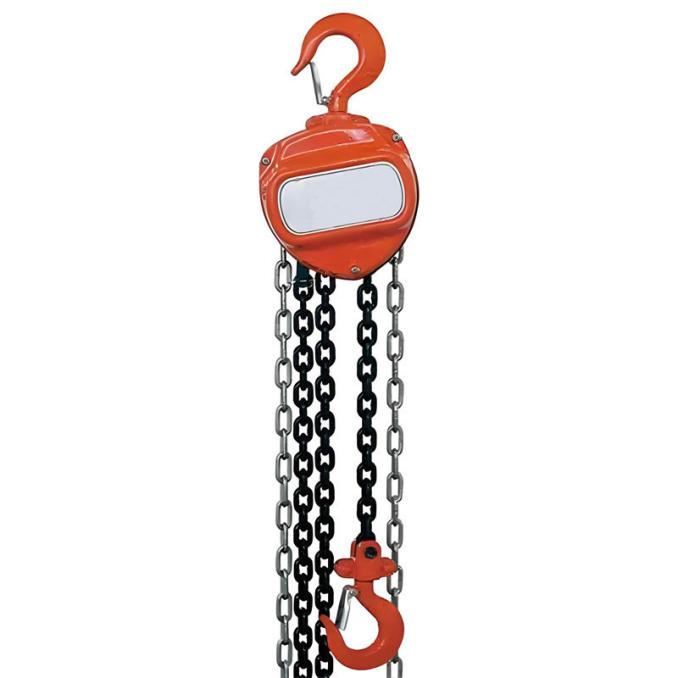

• Matching hoist: Manual chain block (optional electric hoist upgrade)
• Wheel type: Nylon brake casters, anti-slip, wear-resistant
• Working temperature: -20℃ ~ +40℃

Long-Term Cost Benefits for Factory

1. Zero civil engineering transformation cost, no factory beam reinforcement needed
2. Manual design eliminates electricity consumption, long-term operation cost saved
3. Light split structure, one worker can finish disassembly and transfer alone
4. Simple mechanical structure, few vulnerable parts, low annual maintenance cost
5. Multi-scene reuse: One crane can serve multiple production areas alternately

FAQ

Q1: Does this manual gantry crane need electricity to work? A1: No. Standard model is fully manual with hand chain hoist and hand push wheels, suitable for power-free environments. We can upgrade to electric hoist version if you need automatic lifting.

Q2: Can I adjust the height and span of the gantry frame? A2: Height is adjustable by removing the bolt positioning sections. Span can be fully customized according to your workshop space before production.

Q3: Is the crane stable when lifting heavy loads? A3: Equipped with 4 independent brake casters. All wheels lock tightly during hoisting to avoid sliding, and the A-type support legs greatly improve overall structural stability.

Q4: How long is the production delivery cycle? A4: Standard specifications take 7–15 working days; customized special size models take 15–25 working days after receiving deposit.

Q5: What export certificates can you provide? A5: Complete CE, ISO factory inspection documents and full set of export customs clearance papers are supplied.

Our Service & Certificate

We provide free on-site layout matching suggestion, whole machine 12-month warranty and lifelong spare parts supply at factory cost. All cranes pass strict load test before shipment, supporting FOB, CIF trade terms.

Contact Us

If you have inquiries about tonnage, span, lifting height or customized configuration, feel free to contact us for detailed quotation.
