CD1/MD1 Wire Rope Electric Hoist

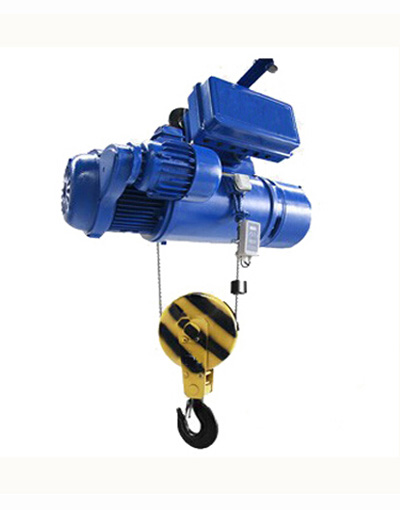

Product Introduction

CD1/MD1 wire rope electric hoist is classic light & small lifting equipment widely matched with single girder overhead cranes, double girder cranes, gantry cranes and jib cranes. CD1 model adopts single lifting speed for regular loading & unloading; MD1 equips dual speed (fast + slow) to realize precise positioning, ideal for assembly, mold maintenance and accurate stacking. With compact body, light dead weight and stable performance, it becomes the most cost-effective lifting solution for general factory material handling.

Core Structural Advantages

1. Integrated Conical Rotor Motor & Built-in Brake All-in-one motor with instant power-off braking, no extra brake parts. Asbestos-free brake pads are eco-friendly and long-wearing, avoiding sudden load falling risks.
2. Complete Multi-layer Safety Protection Equipped with overload limiter, lifting upper/lower limit switch, phase failure, undervoltage & overcurrent protection. 36V low-voltage control circuit ensures operator safety in dusty workshops.
3. Modular & Universal Components Standardized spare parts for all tonnages, easy to disassemble and replace, greatly cutting daily maintenance cost. Optional manual trolley or electric trolley for horizontal travelling on I-beam track.
4. Wide Customization Range Support fixed type, standard headroom / low headroom type, explosion-proof type and different power supply (3P 380V/440V 50/60Hz) for global market demands.

Main Application Scenarios

• General manufacturing workshop: Lifting workpieces, molds, raw materials
• Warehouse & logistics yard: Goods stacking, loading and unloading
• Machinery repair plant: Precise equipment disassembly & assembly (MD1 dual-speed preferred)
• Small mine, dock and construction temporary lifting work

Standard Technical Parameters

• Rated capacity: 0.25t / 0.5t / 1t / 2t / 3t / 5t / 10t / 16t / 20t / 32t (customizable)
• Lifting height: 6m / 9m / 12m / 18m / 24m / 30m, max up to 45m
• Lifting speed: CD1 single speed 8m/min; MD1 dual speed 8/0.8m/min
• Working class: M3/M4 for intermittent medium-duty operation
• Applicable I-beam: 16#–63# standard steel beam
• Working temperature range: -20℃ ~ +40℃

Long-Term Factory Benefits

1. Low upfront investment, far cheaper than European style electric hoist, fast return on investment
2. Light self-weight reduces beam bearing requirement, no extra factory beam reinforcement needed
3. Dual-speed MD1 model reduces material collision damage by 70% during precise placement
4. Simple operation, can be controlled by pendant button or wireless remote control

FAQ

Q1: What is the difference between CD1 and MD1 wire rope hoist? A1: CD1 is single normal speed for ordinary lifting work with low precision requirement. MD1 has fast & slow two speeds, suitable for precise loading, mold fitting and equipment maintenance.

Q2: Can this hoist be used outdoors? A2: Standard model is for indoor use. We can add rainproof motor, anti-rust paint and wind-proof trolley to upgrade for outdoor stockyards.

Q3: Can you provide explosion-proof version for chemical and dust workshops? A3: Yes. Explosion-proof CD1/MD1 hoists are available with complete explosion-proof certificates for export customs clearance.

Q4: How long is the production lead time? A4: Standard models take 10–20 working days; customized explosion-proof or low-headroom types take 20–30 working days after receiving deposit.

Q5: What certificates can you offer for export? A5: Complete CE, ISO and third-party inspection reports, all export documents will be provided.

Our Service & Certificate

We provide free on-site layout matching suggestion, whole machine 12-month warranty and lifelong factory-cost spare parts supply. All hoists pass strict factory test before delivery, supporting FOB, CIF and other trade terms.

Contact Us

If you have inquiries about tonnage, lifting height, speed or special customized configuration, feel free to contact us for detailed quotation.
